The GNSSource-1000 is a low-cost, high performance GPS/GNSS primary reference source. It integrates a smart, low-noise disciplining OCXO and a GPS/GNSS receiver.
It integrates a GPS/GNSS disciplinable GXClock-500 function, using SmarTiming+R technology with an auto-adaptive loop time constant from 100 to 10,000 seconds, depending on the GPS/GNSS signal quality, at cutting-edge 1ns resolution.
The Safran GNSSource-1000 is specifically designed for cross-industry applications, where high stability and timekeeping features are required.
Applications:
• Synchronization
• Timing
• Reference/Test Source
• Time/ Frequency Source

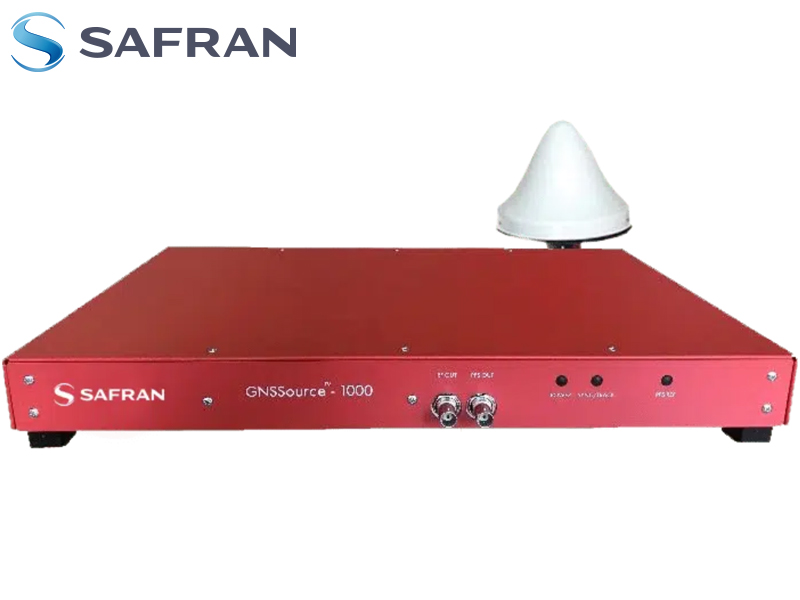

GNSSource-1000
Low-cost, high performance GPS/GNSS primary reference source
특징
• Integrated GPS/GNSS receiver & low-noise GXClock-500
• Output Frequencies (8x 10 MHz / 8x 1PPS or 16x 10 MHz)
• Integrated smart auto calibration
• Internal Bit Alarm
• RS232 standard interface (9600 b/s)
• Windows software application
• GPS antenna types (patch or rooftop)
• Power supply voltage (AC input 100-240 VAC / 50-60Hz)
• Compact 1U rack mountable chassis
• Support and Documentation
규격
| Size | 445 x 300 x 44 mm |
| Environmental Conditions | Temperature: 0ºC ~ +40ºC Humidity: 10% ~ 80% RH |
| Disciplining module | Standard |
| PPS Out | 1PPS |
| Output level | CMOS 0-5V (±20 mA sink/source) |
| Pulse Width (PW) or duty cycle | User settable, 0 to 1s in 133ns/step |
| PPSOUT to PPSREF Sync Error | < 50 ns |
| In Sync mode | No GPS PPSRef noise, ± 1°C temp fluctuations |
| PPSOUT to PPSREF (DE) Programmable delay (In Track mode) | 0 to 1 s in 50 ns steps |
| PPSOUT Holdover Time Stability | Within ± 2°C <25 μs/24 hr |
| Smart Loop Time Constant | Auto-adaptive 100 to 10,000 sec |
| Phase/Frequency | User settable Sync/Track mode ** |
| User Settable | Selected by RS232 interface ** Sync: phase/time alignment; Track: frequency alignmen |
