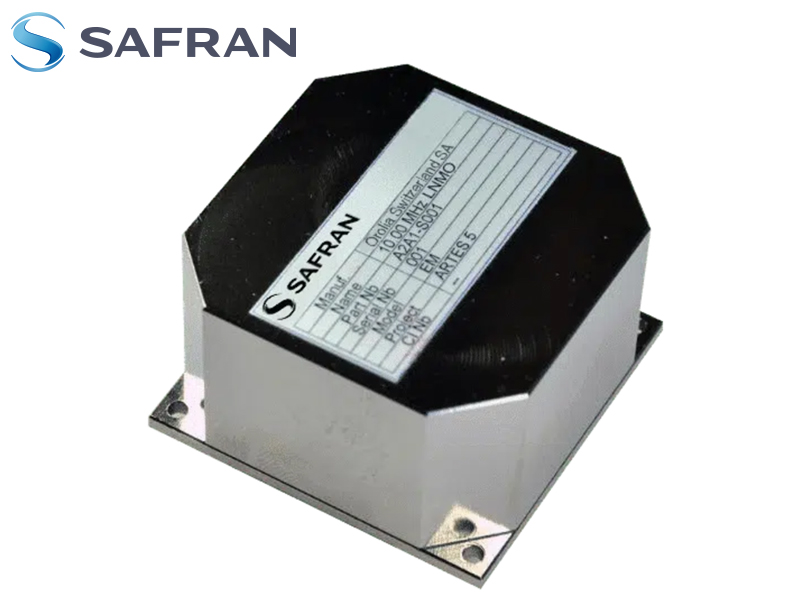

LNMO Quartz Crystal Oscillator

Ultra-high-performance, space-qualified master crystal oscillator

The LNMO Quartz Crystal Oscillator is designed with the latest technologies, providing advanced features, such as long lifetime, high reliability, lightweight and ultra low phase noise, for next-generation space applications.


Applications:


• GNSS/GPS navigational systems

• SAR systems

• FGU systems

• MRO systems

특징

• Very small mass and volume

• Low noise

• Low power consumption

• Low temperature sensitivity

• Excellent short and long term stability

• Fast warm-up

• Wide operating temperature

• Pre-adjusted frequency and/or

• voltage controlled

• Frequency Range: 5MHz to 40MHz

• Supply voltage: 12V or 15V

• Rad tolerant up to 100krad

규격

Size (WxHxL)
50x50x30mm | 1.96×1.96×1.18″
Weight
100 g | 0.22 lbs
Power (operating)< 2.5-2.5W
Frequency long term stability
1st year
Average ageing per day after 1 month
< ±3x10-8 / year
< ±1x10-10 / day
Frequency long term stability, years after
< ±1x10-8 / year
Frequency short term stability
< 1x10-12 (0.1-10 s)
Frequency stability over full temp. range
< ± 1x10-9
Pressure sensitivity vacuum to atmosphere (thermal effect)
< ±5 x 10-8 @25°C
Frequency adjustment
> ± 2.5 Hz
