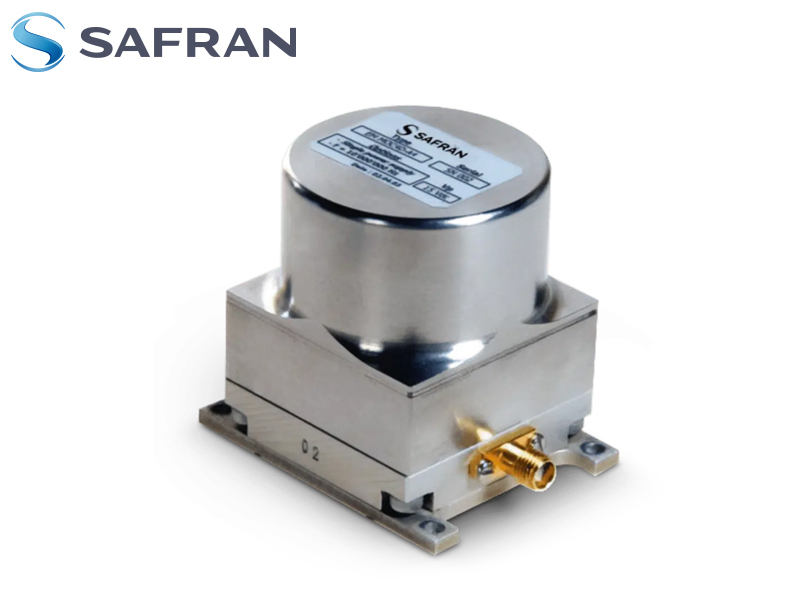

MO Quartz Crystal Oscillator

High-performance, space-qualified master crystal oscillator

The MO Quartz Crystal Oscillator is a cost-effective, high-performance, and space-qualified master crystal oscillator.


It’s designed with space technology to endure long lifetime and high reliability, withstanding harsh space applications.


Applications:


• GNSS/GPS navigational systems

• SAR systems

• FGU systems

• MRO systems

특징

• Small mass and volume

• Low power consumption

• Low temperature sensitivity

• Excellent short and long term stability

• Fast warm-up

• Wide operating temperature

• Pre-adjusted frequency

• Lifetime/MTBF 15 yrs / 9 million hrs

• Warm-up time @ 25C 20 min, < +2E-8

• Designed to withstand harsh space applications

규격

Size (WxHxL)
44x54x57mm | 1.73×2.12×2.24″
Weight
220 g | 0.48 lbs
Power (operating)
3.5-5.5W
Voltage
12-18V
Warmup
8W
Output
10 MHz
Frequency Long term stability, years after
< ±1x10-8 / year
Frequency Long term stability per day
< ±1x10-10 / day
Frequency short term stability(0.1-10 s)

• STD < 3x10-12

• LN < 5x10-13

• ULN <±3x10-13

Frequency stability over full temp. range
< ± 1x10-9
Pressure sensitivity vacuum
< ±1 x 10-8 @25°C
Frequency adjustment
> ±1.5 Hz
