The RBSource™ is a low-cost, high-performance rubidium reference disciplinable to an external GPS/GNSS standard, all in a compact 19″ 1U package.
It uses an auto-adaptive SmarTiming+® technology, disciplining the GPS/GNSS reference up to 100,000 seconds at 1ns resolution, depending on the GPS/GNSS 1PPS reference noise and signal-impairment level.
Applications:
• Rubidium atomic clock standard for cross-industry applications
• Rb atomic clock reference for high-precision lab instruments
• GPS-disciplined or standalone Rb atomic clock standard for scientific & lab projects
• GPS-disciplined or standalone Rb atomic clock reference for network timing analyzers
• GPS-disciplined or standalone Rb atomic clock for time & frequency system calibration

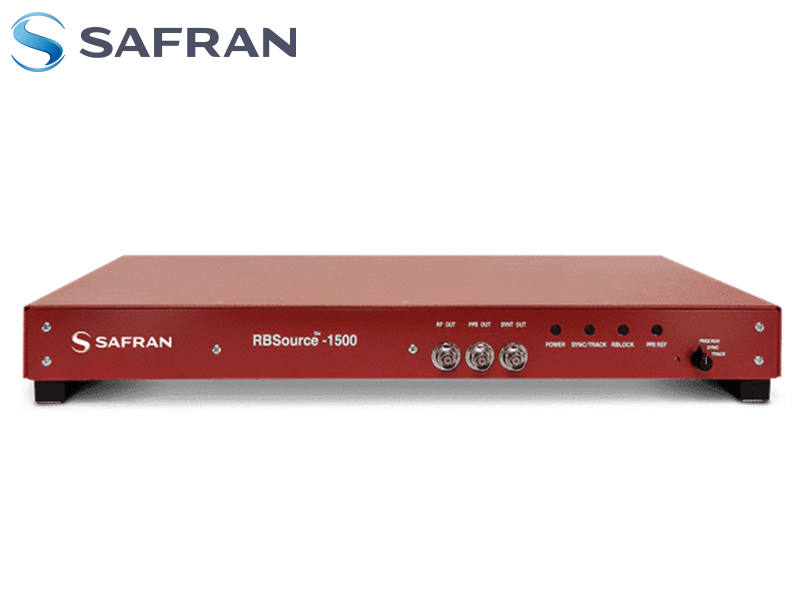

RBSource-1500
Low-cost, high performance GPS/GNSS primary reference source
특징
• Rubidium reference – disciplined to GPS/GNSS
• 1 ns resolution
• Auto-adaptive SmarTiming+® Technology
• Integrated Rb clock
• Integrated GPS/GNSS disciplinable Rb clock
function, using
• SmarTiming+® technology at 1ns resolution
• Integrated smart auto calibration
• Internal Bit Alarm
규격
| Output Frequencies | 8x 10MHz / 8x 1PPS or 16x 10 MHz |
| Interface | RS232 standard interface (9600 b/s) |
| software application | Windows 7, 11 compatible |
| Power supply voltage | AC input 100–240 VAC / 50–60 Hz |
| chassis | Compact 1U rack mountable |
