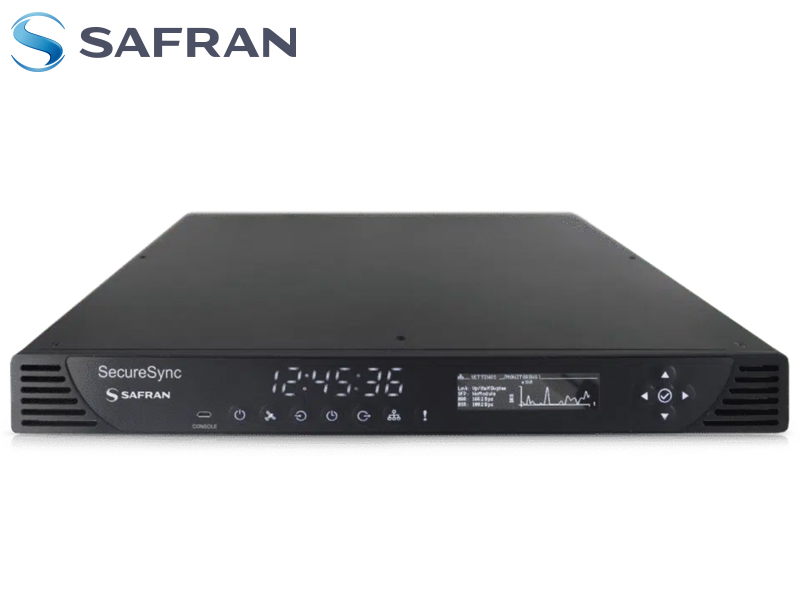

The SecureSync 2400 is a reliable and modular GNSS / GPS time server. It can output both 10MHz frequency as well as pulse-per-second PPS signals and PTP. The SecureSync 2400 is designed to synchronize critical defense and commercial infrastructures that require extreme reliability and security.

The SecureSync 2400 time sync server is built on a highly configurable platform to offer precisely what you need at the lowest cost of ownership. You can choose what types of interfaces and connectors you need.

The rear panel of the SecureSync offers you 6 option card slots. The flexibility with option cards enables you to add only what you need. You can synchronize your network with either NTP or PTP timing protocols. You can modify the inputs and outputs, depending on your project requirements. The SecureSync 2400 is also field-upgradeable, meaning you can swap out old option cards and slide in new ones.

• Multi-GNSS receiver (GPS, Galileo, GLONASS, BeiDou)

• Built-in high performance NTP server, PTP Grandmaster options

• Internal precision time keeping via TCXO, OCXO, or Rubidium oscillator

• Low phase noise frequency options

• Advanced cybersecurity network management and control:

- Networking – Access Control Lists (ACLs) and iptables firewall suppport

- Login – Login banner support

- SSH – Public / private key support

- Passwords – Configurable password policy and password expiration

- HTTPS – Signed certificate support

- (SHA256 default) – Configurable cipher usage and TLS v1.1 and 1.2

- Military Encrypted Signals – M-CODE

- NTP – Symmetric keys

• Timing Signal Modularity

• Optional White Rabbit Option Card upgrade

• Optional Jamming & Spoofing Protection upgrade

Timing Signals	• 10 MHz Sine Output, BNC • 1 PPS Timing Output
Software-Configurable Timing Output	• TTL input/output, RS-422/485 input/output, RS-232 input/output, IRIG AM output
Accuracy (Phase)	• +/- 50 ns to +/- 15 ns (based on oscillator configuration)
Accuracy (Frequency)	• 1×10-12 (based on oscillator configuration)
Network Services	• NTP v2, v3, v4: Conforms with RFC 1305 and 5905 • Supports Unicast, Broadcast, Multicast, Symmetric Key Encryption, Peering, Statum 2 • SNTP v4, v4: Conforms with RFC 1769, 2030, 4330, and 5905 • PTP v2: Conforms with IEEE 1588:2019 • Supports Master, Slave, E2E, IPv4/v6, Multicast, Unicast, Hybrid modes • PTP supported profiles: default, power (IEEE 61850-9-3, IEEE C37.238-2011/2017), telecom (ITU-T G.8275.2 master only) G.8265.1
