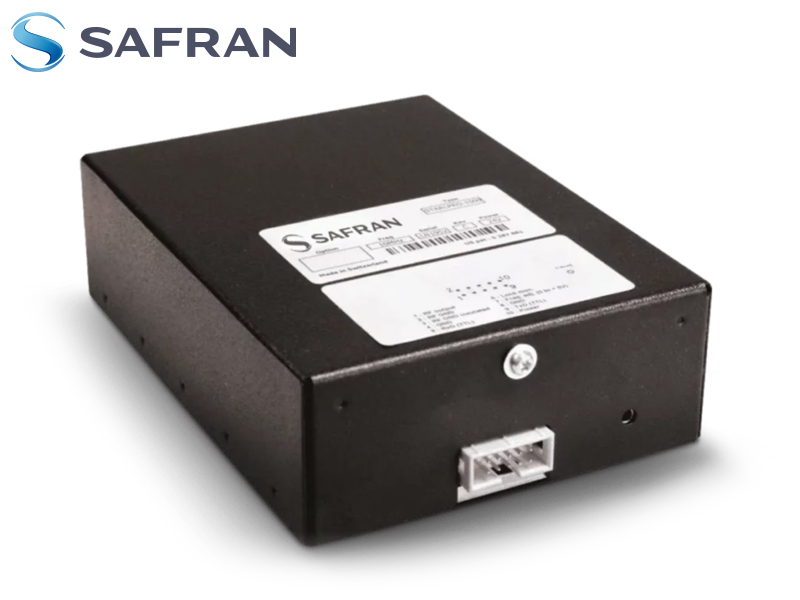

StarLPRO-1500 Rubidium Oscillator

Low-cost, smart rubidium oscillator source


The StarLPRO-1500 is a low-cost, smart rubidium oscillator source compatible with the old Datum LPRO Rb package. It replaces and is compatible with the old LPFRS/LPRO model.

The StatLPRO allows customers to reduce their cost and seamlessly upgrade deployed systems with dying or aging Datum LPRO rubidium oscillators, while using the smart features of the StarLPRO to achieve higher performance and reliability and extended lifetime.


Applications:


• Mobile & wired telecom infrastructures

• Broadcasting systems

• Military communications, surveillance, tracking & guidance systems

• High precision instruments

• Time & frequency systems

특징

• Very low temperature sensitivity

• Excellent short term stability

• Low power consumption

• Pin compatible with industry std.

• Small volume / low profile

• Rb lamp extended life expectancy (20 years)

• Industry standard pin out

• RS 232 interface for center frequency adjustment and monitoring of the working parameters

규격

Output
10 MHz
Accuracy @ shipment typ.
< 5×11 at 25C
Tempco
< 2E-10
Temp
0 to 60C
Aging
< 5E-11/mth
Warm-up time
@ 25C 12 min, 5E-10
Power (operating)
< 7-14W
Voltage
24V
Warmup
< 38W
Size (WxHxL)
128x95x38.1mm | 5×3.74×1.5″
Weight
234 g | 8.25 oz
