SPG-FTR

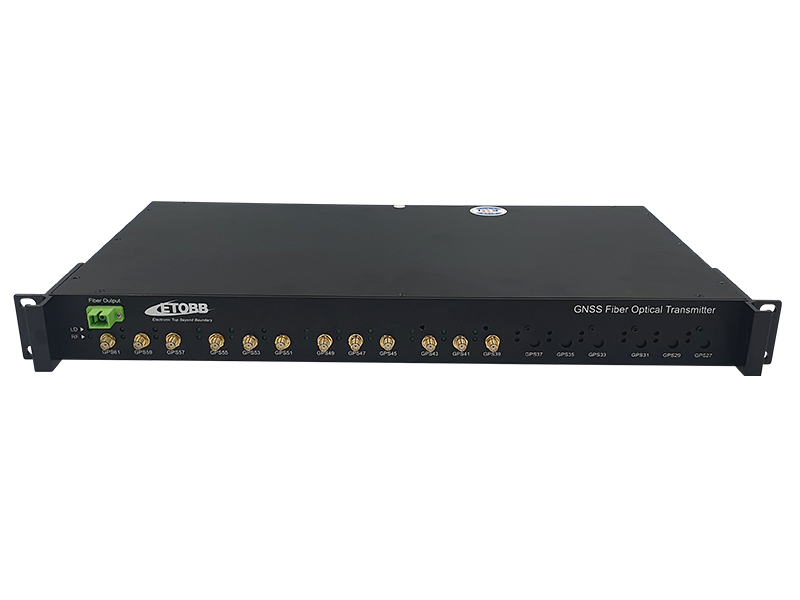

GNSS Transmitter
• SPG-F fiber link distributes GNSS signal over fiber optic cable in the tunnel or subway for GPS/GLONASS/Galileo/Beidou
• SPG-F fiber link includes
- SPG-FTR rack mount fiber optic transmitter,
- SPG-FTX GNSS transceiver.
• SPG-FTR optical transmitter converts 3ch or 6ch or 9ch or 12ch or 15ch or 18ch GNSS RF at the CWDM wavelength independently.
• SPG-FTX GNSS transceiver drops the GNSS RF of the CWDM channel and
passes the remaining CWDM channels to the next GNSS fiber optic transceiver.
특징
• Aluminum Housing
• Sending up to 18 GNSS Simulator RFs over one SM fiber
• Each modular transmitter converting one GNSS RF into one CWDM wavelength
• One 19” 1RU housing have 6 slots, each slot for 3pcs modular transmitters
• All CWDM wavelengths are muxed in one SM fiber
• Each modular transceiver dropping one GNSS RF and passing other CWDM
• wavelengths
• Offering GPS/GLONASS/Galileo/Beidou services in the tunnel or subway
• Offering 5.0V DC power to GPS/GLONASS/Galileo/Beidou antenna
• high linearity laser and high linearity Photodiode
• Total 18ch CWDM wavelengths available
• GaAs Low Noise Amplifier
• Transceiver unit having both receiver module and re-transmitting module
규격
| RF Input Connector | SMA Female, 50Ohm |
| DC Output Power at SMA connector | 5V 100mA on request |
GNSS simulator RF Frequency: 950~2150MHz Supporting | GPS L1/L2/L5 Beidou B1/B2/B3 GLONASS G1/G2/G3 GALILEO E1/E5B |
| RF Return Loss | >10dB |
| Optical Transmitter wavelength | 1270nm, 1290nm,1310nm…1610nm Total 18ch CWDM wavelength available |
| Optical Transmitter Output Power | >+5dBm |
| Fiber Optical Connector | SC/APC, SM fiber |
| Power to GPS Antenna | 5.0V DC, Max 100mA |
| Power Consumption of transmitter | < 30W |
| Power Supply | 100~240V AC |
• SPG-F fiber link distributes GNSS signal over fiber optic cable in the tunnel or subway for GPS/GLONASS/Galileo/Beidou
• SPG-F fiber link includes
- SPG-FTR rack mount fiber optic transmitter,
- SPG-FTX GNSS transceiver.
• SPG-FTR optical transmitter converts 3ch or 6ch or 9ch or 12ch or 15ch or 18ch GNSS RF at the CWDM wavelength independently.
• SPG-FTX GNSS transceiver drops the GNSS RF of the CWDM channel and
passes the remaining CWDM channels to the next GNSS fiber optic transceiver.
SPG-FTR
GNSS TRANSMITTER
특징
• Aluminum Housing
• Sending up to 18 GNSS Simulator RFs over one SM fiber
• Each modular transmitter converting one GNSS RF into one CWDM wavelength
• One 19” 1RU housing have 6 slots, each slot for 3pcs modular transmitters
• All CWDM wavelengths are muxed in one SM fiber
• Each modular transceiver dropping one GNSS RF and passing other CWDM
• wavelengths
• Offering GPS/GLONASS/Galileo/Beidou services in the tunnel or subway
• Offering 5.0V DC power to GPS/GLONASS/Galileo/Beidou antenna
• high linearity laser and high linearity Photodiode
• Total 18ch CWDM wavelengths available
• GaAs Low Noise Amplifier
• Transceiver unit having both receiver module and re-transmitting module
규격
| RF Input Connector | SMA Female, 50Ohm |
| DC Output Power at SMA connector | 5V 100mA on request |
GNSS simulator RF Frequency: 950~2150MHz Supporting | GPS L1/L2/L5 Beidou B1/B2/B3 GLONASS G1/G2/G3 GALILEO E1/E5B |
| RF Return Loss | >10dB |
| Optical Transmitter wavelength | 1270nm, 1290nm,1310nm…1610nm Total 18ch CWDM wavelength available |
| Optical Transmitter Output Power | >+5dBm |
| Fiber Optical Connector | SC/APC, SM fiber |
| Power to GPS Antenna | 5.0V DC, Max 100mA |
| Power Consumption of transmitter | < 30W |
| Power Supply | 100~240V AC |
 |  |  |
