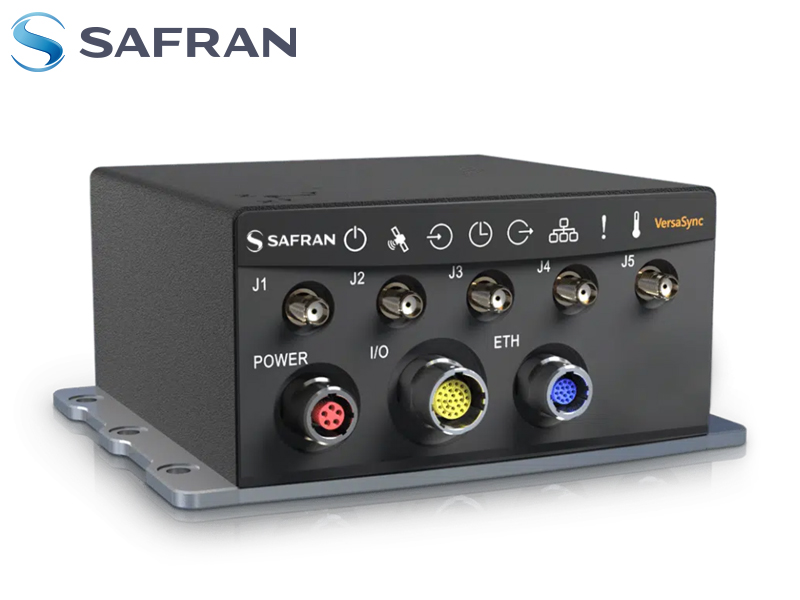

VERSASYNC

VersaSync is a high performance GPS master clock and network time server that delivers accurate, software configurable time and frequency signals under all circumstances, including GNSS-denied environments. Its compact size and high level of ruggedization make VersaSync suitable for mobile applications in harsh environments. Its small footprint allows for easy integration of the time and frequency functionality into systems architecture.

Applications:

Ground

• Mobile radio and C3I sync

• Anti IED jamming systems

• Robotics

• Satcom On The Move (SOTM)

• Flying Clock - Time distribution in persistent GNSS denied environment

Airborne

• Communication network sync

• Intelligence, Surveillance, and Reconnaissance Platforms

• (radar, optical, electronic warfare) Flying test bench

• Flight Test Instrument

Marine/Naval

• Communication network sync

• Sensor support (radar, sonar, optical, electronic warfare)

• Offshore/DSO platforms

Operational Readiness	• 1PPS time of day available (hot start) • 60 s: 1ms accuracy to UTC • 200 s: 1µs accuracy to UTC
Physical	• Size (WxHxD): 5.8” x 2.5” x 5.0” (147.3 x 127.5 x 63.0 mm) VITA 75 compliant • Weight: 0.91 kg (2.0 lbs) • Mounting: On a plate, optimized for conduction cooling, 6 through holes
Power	• Input Voltage: 10-32 VDC • Typical Power Draw: <25 W (with OCXO) • Standby mode (only oscillator is powered): 0.4 W, DC power supply must be within 10 – 32 VDC
Environmental	• Tested to MIL-STD-810G CH1 • Temperature, in operation: -40°C to +71°C with • OCXO (-10°C to +45°C with mRO-50) • Mounting plate temperature, in storage: -45°C to +85°C • Humidity: 95% RH, non-condensing • Altitude: 45,000 ft • Environmental Protection: IP 65 • Vibration MIL-STD-810G CH1 Method 514.7, • Categories 12,13,14,20,21,24 • Shock: 20 g, 11 ms, sawtoot
