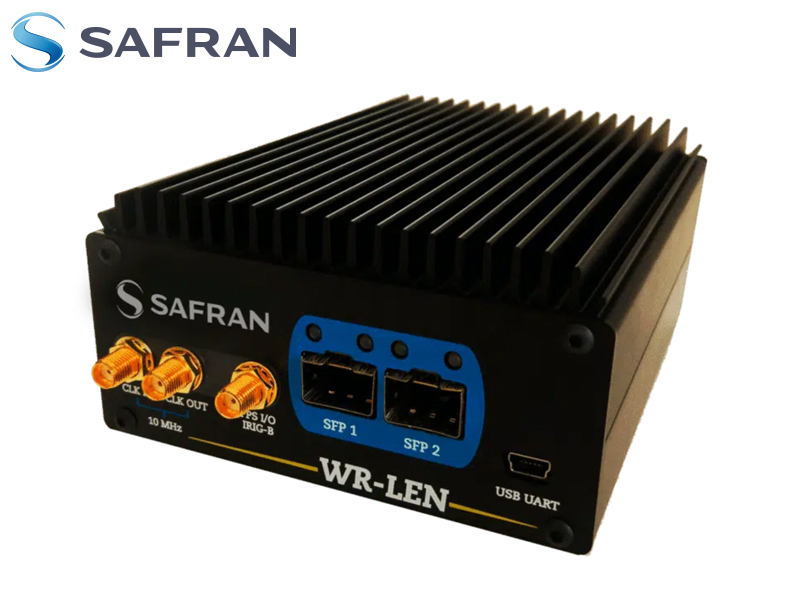

White Rabbit LEN

The cost effective node to distribute synchronization


WR LEN

White Rabbit LEN은 데이지 체인 구성을 지원할 수 있는 초소형 저가 장비 입니다. 이를 통해 비용 효율적인 솔루션으로 장비에 PPS/10MHz 신호 또는 IRIG-B 프로토콜을 배포할 수 있습니다.


선택 사항

PPS용 2xμ-DB9 커넥터 및 10MHz 팬아웃 또는 구성 가능한 출력 트리거.

특징

• Sub-nanosecond time accuracy

• Compact size

• Distance range: over 80 km using fiber

• Robustness & Redundancy

• Dynamic calibration

• Remote monitoring & upgrade

• Programmable trigger

규격

Size
54 x 105 x 135 mm
Power
5V DC, 1.5 A – 7.5W max
Environmental Conditions

• Temperature: -10ºC ~ +50ºC

• Humidity: 0% ~ 90% RH

Timing Protocols / Interfaces

• WhiteRabbit – Dual optical fiber Ethernet 1G interfaces

• IRIG-B / PPS I/O – Digital LVTTL (3.3V) Selectable operation

Frequency I/O
10 MHz programmable input/output

WR LEN

White Rabbit LEN은 데이지 체인 구성을 지원할 수 있는 초소형 저가 장비 입니다. 이를 통해 비용 효율적인 솔루션으로 장비에 PPS/10MHz 신호 또는 IRIG-B 프로토콜을 배포할 수 있습니다.


선택 사항

PPS용 2xμ-DB9 커넥터 및 10MHz 팬아웃 또는 구성 가능한 출력 트리거.

특징

• Sub-nanosecond time accuracy

• Compact size

• Distance range: over 80 km using fiber

• Robustness & Redundancy

• Dynamic calibration

• Remote monitoring & upgrade

• Programmable trigger

규격

Size
54 x 105 x 135 mm
Power
5V DC, 1.5 A – 7.5W max
Environmental Conditions

• Temperature: -10ºC ~ +50ºC

• Humidity: 0% ~ 90% RH

Timing Protocols / Interfaces

• WhiteRabbit – Dual optical fiber Ethernet 1G interfaces

• IRIG-B / PPS I/O – Digital LVTTL (3.3V) Selectable operation

Frequency I/O
10 MHz programmable input/output
