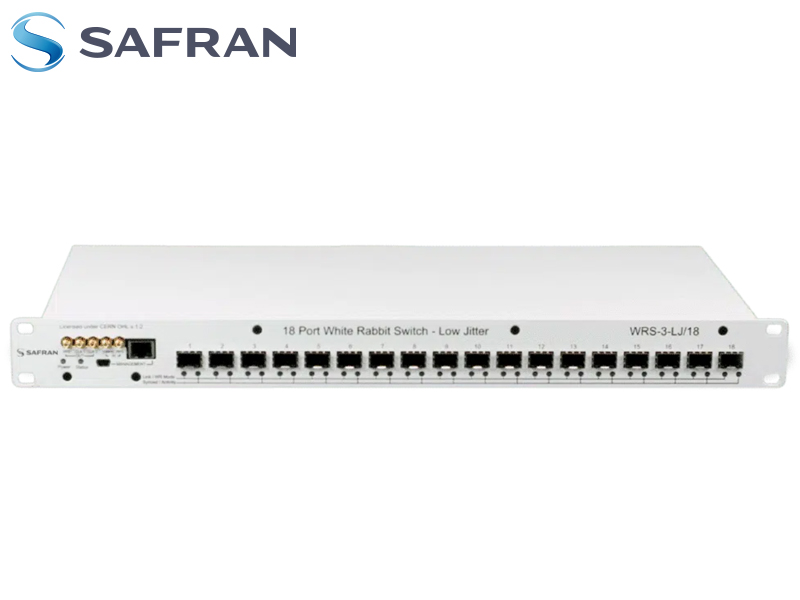

White Rabbit Switch – Low Jitter

For demanding time and frequency distribution applications


The newest White Rabbit Switch – Low Jitter contains a series of improvements that enable its use in more demanding time and frequency distribution applications. The WRS-LJ distributes Time and Frequency within sub-nanosecond accuracy to thousands of nodes through standard optical fiber, providing very low noise and accurate timing outputs.


The WRS-LJ provides deterministic delivery and a reliable communication. Currently, highly demanding industrial and scientific facilities in more than fourteen countries are already using WR Switches for time-critical applications.

특징

• Sub-nanosecond time accuracy

• 18 SFP 1GbE ports

• Time and frequency distribution

• Distance range over 100km in 1-hop

• Remote monitoring

• Improved clocking design in HW and FPGA

• Cleaner and more accurate 1PPS output.

• Improved clock jitter and phase noise

• Lower power consumption and better thermic dissipation

• High reliability and improved MTFB

규격

Size
447 mm x 44 mm x 223 mm
Power Input
100-240VAC, 2.0A 50-60 Hz
Power Output
12V DC, 6.66A – 80W max
Certifications
ISO-9001, ISO-14001, CE, RoHS,FCC,SE
Environmental Conditions

• Temperature: -10ºC ~ +50ºC

• Humidity: 0% ~ 90% RH

Timing Protocols / Interfaces

• White Rabbit: Supported on 18xSFP ports

• IEEE1588-

• 2008 (PTP):

• Default profile (layer 2) supported on 18xSFP ports

• NTP: v2, v3 & v4 supported in Ethernet interfaces.
