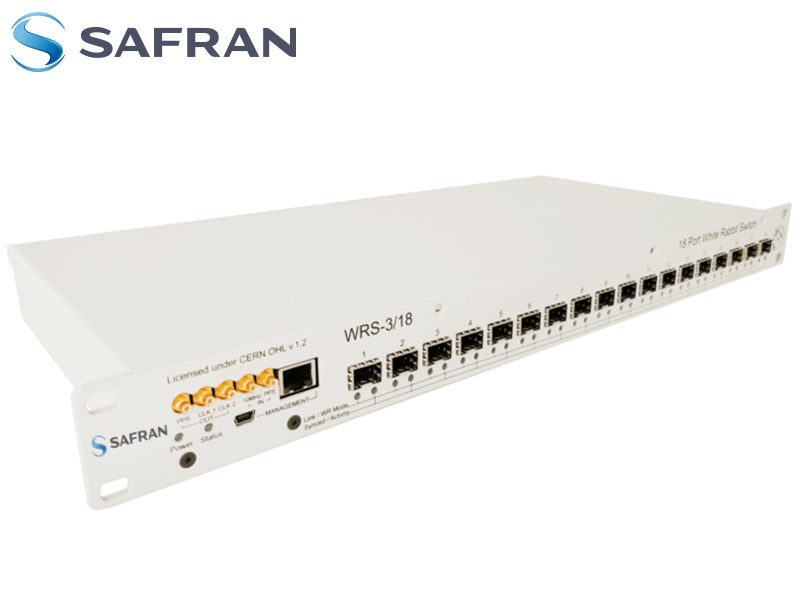

White Rabbit Switch v3.4.

WR Switch

It is the first commercial available device developed with the White Rabbit (WR) Technology. It distributes Time and Frequency within a sub-nanosecond accuracy to thousands of nodes through standard optical fiber over Metro Area network distances. It also works as a basic data switch. It is the basic element for scientists and technologists looking for experimenting with WR technology and to evaluate features like deterministic time transfer or dynamical self-calibration of optical fiber links.

• Deterministic time distribution with accuracy 1 ns.

• Long distances (hundreds of Kms).

• Many hops (14 tested keeping subnanosecond accuracy).

• Subnanosecond accurate event timestamps (ps for Ethernet traffic).

• Dependable: redundant network topologies.

• High scalability.

• Heterogeneous timing interface (PTP, NMEA, etc).

Size	447 mm x 44 mm x 223 mm
Power Input	100-240VAC, 2.0A 50-60 Hz
Power Output	12V DC, 6.66A – 80W max
Certifications	ISO-9001, ISO-14001, CE, RoHS,FCC,SE
Environmental Conditions	• Temperature: -10ºC ~ +50ºC • Humidity: 0% ~ 90% RH
Timing Protocols and Front Panel	• Clocks I/O: 5 SMC coaxial connectors • 10 MHz reference clock input (GPS/Cesium) • 10MHz & 62.5 MHz output reference clock • 1xPPS Input & 1xPPS Output
Ports	• 18 x SFP cages* • *SFP transceivers are not included in all packages. Recommendation – 1.25Gbps, 1490/1310 nm, Single Fiber Bi-directional SFP.
Management	• 100Base-T Ethernet (Remote) • USB Mini-B (Local)
