White Rabbit ZEN TP-32BNC

WR-ZEN TP-32BNC

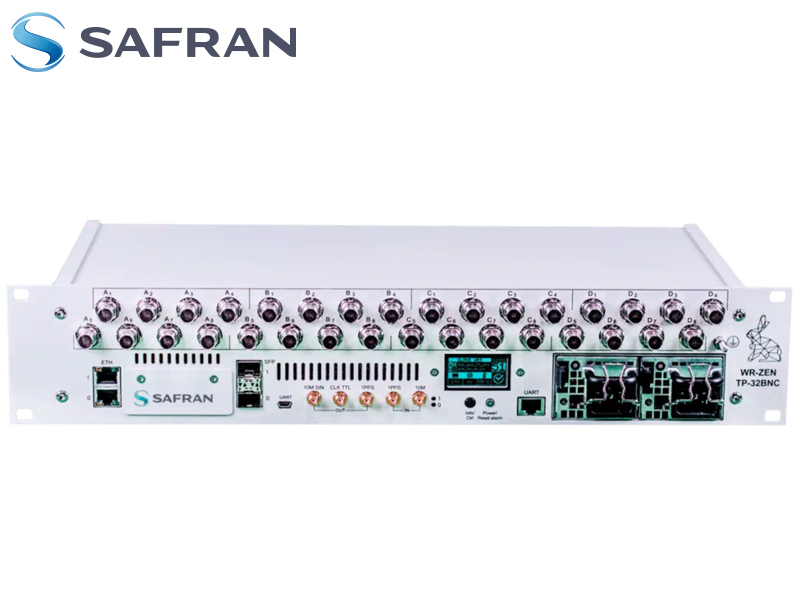

It is the versatile standalone node that provides the White Rabbit features to a wide range of applications making use of its redundant connections. The WR-ZEN TP-32BNC easily distributes time and frequency to other equipment by implementing standard timing protocols such as PTP, NTP, IRIG-B, etc.

The WR-ZEN TP-32BNC combines ultra-stable clocks with low jitter and temperature compensated clock resources to enhance its synchronization accuracy. In addition, it includes a fanout module to synchronize multiple devices through standard 10 MHz and PPS.

The new Low Jitter version of the WR-Z family products is now available!

This new Low Jitter (LJ) capability, enabled in the new hardware version of the WR-Z products, includes improved design in order to provide better stability in the timing outputs of the system, especially for the frequency signals, as it can be seen in the corresponding datasheet.

Size	428 x 88 x 220 mm
Environmental Conditions	• Temperature: -10ºC – +50ºC • Humidity: 0% ~ 90% RH
Ethernet	2x 10/100/1000 Base-T RJ45 (Management, NTP)
SFP Ports	2x 1GbE (WR, PTP, NTP)
Clocks I/O	• 5xSMA coaxial connectors (3V/50Ω): • 10 MHz SIN OUT • CLK OUT(LVTTL) • PPS OUT/IRIG-B (LVTTL) • PPS IN (LVTTL) • 10MHz IN (TTL/CMOS/ ECL/clippedsine)
Fanout	• 32x BNC configurable outputs divided in 2 blocks: • (1.7V/50Ω): • A&B: 10MHz/xPPS/IRIG-B (LVTTL, with selectable 50Ω termination) • C&D: xPPS/IRIG-B (LVTTL, with selectable 50Ω termination)
LCD	Information panel for alerts & network configuration

WR-ZEN TP-32BNC

It is the versatile standalone node that provides the White Rabbit features to a wide range of applications making use of its redundant connections. The WR-ZEN TP-32BNC easily distributes time and frequency to other equipment by implementing standard timing protocols such as PTP, NTP, IRIG-B, etc.

The WR-ZEN TP-32BNC combines ultra-stable clocks with low jitter and temperature compensated clock resources to enhance its synchronization accuracy. In addition, it includes a fanout module to synchronize multiple devices through standard 10 MHz and PPS.

The new Low Jitter version of the WR-Z family products is now available!

This new Low Jitter (LJ) capability, enabled in the new hardware version of the WR-Z products, includes improved design in order to provide better stability in the timing outputs of the system, especially for the frequency signals, as it can be seen in the corresponding datasheet.

Size	428 x 88 x 220 mm
Environmental Conditions	• Temperature: -10ºC – +50ºC • Humidity: 0% ~ 90% RH
Ethernet	2x 10/100/1000 Base-T RJ45 (Management, NTP)
SFP Ports	2x 1GbE (WR, PTP, NTP)
Clocks I/O	• 5xSMA coaxial connectors (3V/50Ω): • 10 MHz SIN OUT • CLK OUT(LVTTL) • PPS OUT/IRIG-B (LVTTL) • PPS IN (LVTTL) • 10MHz IN (TTL/CMOS/ ECL/clippedsine)
Fanout	• 32x BNC configurable outputs divided in 2 blocks: • (1.7V/50Ω): • A&B: 10MHz/xPPS/IRIG-B (LVTTL, with selectable 50Ω termination) • C&D: xPPS/IRIG-B (LVTTL, with selectable 50Ω termination)
LCD	Information panel for alerts & network configuration
