White Rabbit ZEN TP-FL

WR-ZEN TP-FL

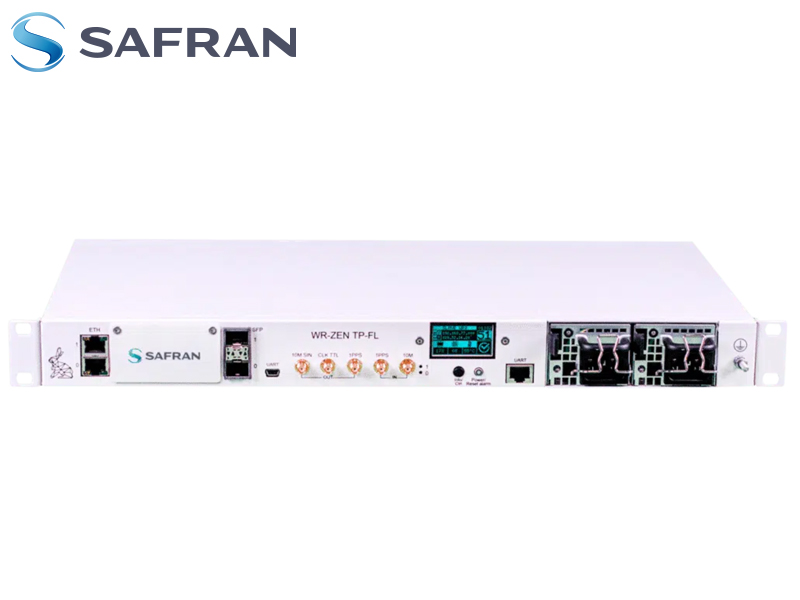

The WR-ZEN TP-FL is the fundamental standalone node that provides White Rabbit features to a wide range of applications making use of its redundant connections. The WR-ZEN TP-FL easily distributes time and frequency to other equipment by implementing widely available timing protocols: PTP, NTP, 10MHz/PPS.

The WR-ZEN TP-FL combines ultra-stable clocks with low jitter and temperature compensated clock resources to enhance its synchronization accuracy in a cost-effective 1U form factor.

The new Low Jitter version of the WR-Z family products is now available!

This new Low Jitter (LJ) capability, enabled in the new hardware version of the WR-Z products, includes improved design in order to provide better stability in the timing outputs of the system, especially for the frequency signals, as it can be seen in the corresponding datasheet.

Extra Options (optional):

• 4x SMA expansion module with configurable outputs.

• 8x SMA expansion module with configurable outputs.

• Holdover expansion

WR-ZEN TP-FL

The WR-ZEN TP-FL is the fundamental standalone node that provides White Rabbit features to a wide range of applications making use of its redundant connections. The WR-ZEN TP-FL easily distributes time and frequency to other equipment by implementing widely available timing protocols: PTP, NTP, 10MHz/PPS.

The WR-ZEN TP-FL combines ultra-stable clocks with low jitter and temperature compensated clock resources to enhance its synchronization accuracy in a cost-effective 1U form factor.

The new Low Jitter version of the WR-Z family products is now available!

This new Low Jitter (LJ) capability, enabled in the new hardware version of the WR-Z products, includes improved design in order to provide better stability in the timing outputs of the system, especially for the frequency signals, as it can be seen in the corresponding datasheet.

Extra Options (optional):

•4x SMA expansion module with configurable outputs.

•8x SMA expansion module with configurable outputs.

•Holdover expansion

Size	444 x 43 x 221 mm
Environmental Conditions	• Temperature: -10ºC – +50ºC • Humidity: 0% ~ 90% RH
Ethernet	2x 10/100/1000 Base-T RJ45 (Management, NTP)
SFP Ports	2x 1GbE (WR, PTP, NTP)
Clocks I/O	• 5xSMA coaxial connectors (3V/50Ω): • 10 MHz SIN OUT • CLK OUT(LVTTL) • PPS OUT (LVTTL) • PPS IN (LVTTL) • 10MHz IN (TTL/CMOS/ ECL/clipped sine)
LCD	Information panel for alerts & network configuration
Expansion	• 4/8x SMA connectors(3.3V/50Ω): • 1PPS/10MHz/IRIG-B (LVTTL)

Size	444 x 43 x 221 mm
Environmental Conditions	• Temperature: -10ºC – +50ºC • Humidity: 0% ~ 90% RH
Ethernet	2x 10/100/1000 Base-T RJ45 (Management, NTP)
SFP Ports	2x 1GbE (WR, PTP, NTP)
Clocks I/O	• 5xSMA coaxial connectors (3V/50Ω): • 10 MHz SIN OUT • CLK OUT(LVTTL) • PPS OUT (LVTTL) • PPS IN (LVTTL) • 10MHz IN (TTL/CMOS/ ECL/clipped sine)
LCD	Information panel for alerts & network configuration
Expansion	• 4/8x SMA connectors(3.3V/50Ω): • 1PPS/10MHz/IRIG-B (LVTTL)
