SAFRAN 한국 독점 대리점,

TUALCOM  한국 파트너

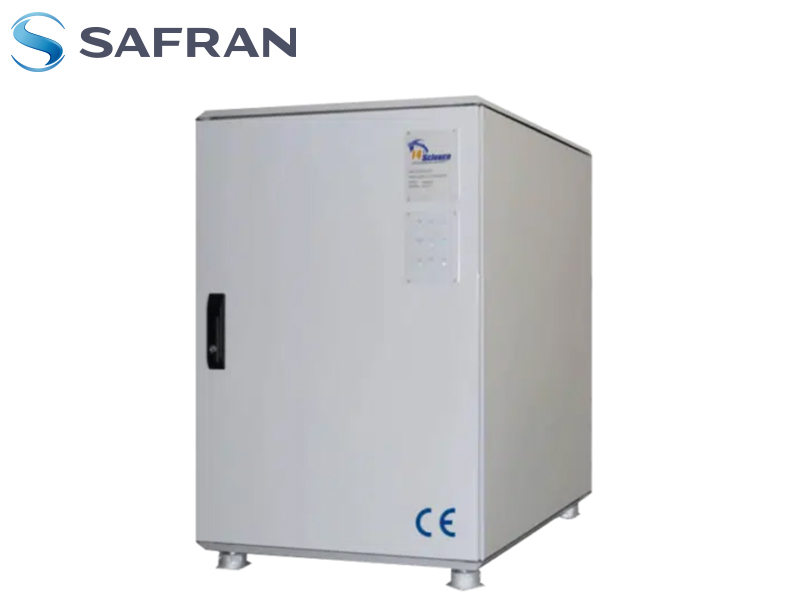

iMaser 3000

Smart Active Hydrogen Maser Clock

State-of-the-Art, High-Performance

The iMaser 3000 clock is a state-of-the-art, high-performance and smart maser, integrating intelligent functionality in a compact, cost-effective and maintenance-free package. It utilizes the latest maser technologies and active/sleep mode of operations for extended lifetime.


The field lifetime of the iMaser is over 40 years, and maser clocks deployed since 1982 are still working perfectly today.

특징

• iCeramic™ cavity technology for high gain performance

• Advanced -132 dBc/Hz @1 Hz Phase Noise

• LoSensitivity™ technology for higher stability performance

• Smart iControlTM Ethernet remote control & monitoring technology

• iShield™ packaging technology for stringent CE Standard EN 55032 Class B & Standard EN 61000-4 & EMC compliance

• Stability: 6.0E-14 at 1 s

규격

Ultra High Frequency Stability
Allan deviation (1Hz bandwidth) :

• 1 s 6·10-14

• 1’000 s 1.5·10-15

• 10’000 s 1·10-15

Low Phase Noise (5MHz)
-132 dBc/Hz @ 1Hz
High Electromagnetic Compliance
EN 55032 Class B & EN 61000-4 (NEW Standard 2022)
Cavity Tuning allows a long term drift better than 2·10-16/day
Distance control, remote Ethernet monitoring & Self-diagnostics (Alarms)
Warranty/Maintenance
2 years
Lifetime
>20 years

State-of-the-Art, High-Performance

The iMaser 3000 clock is a state-of-the-art, high-performance and smart maser, integrating intelligent functionality in a compact, cost-effective and maintenance-free package. It utilizes the latest maser technologies and active/sleep mode of operations for extended lifetime.


The field lifetime of the iMaser is over 40 years, and maser clocks deployed since 1982 are still working perfectly today.


특징

• iCeramic™ cavity technology for high gain performance

• Advanced -132 dBc/Hz @1 Hz Phase Noise

• LoSensitivity™ technology for higher stability performance

• Smart iControlTM Ethernet remote control & monitoring technology

• iShield™ packaging technology for stringent CE Standard EN 55032 Class B & Standard EN 61000-4 & EMC compliance

• Stability: 6.0E-14 at 1 s

규격

Ultra High Frequency Stability
Allan deviation (1Hz bandwidth) :

• 1 s 6·10-14

• 1’000 s 1.5·10-15

• 10’000 s 1·10-15

Low Phase Noise (5MHz)
-132 dBc/Hz @ 1Hz
High Electromagnetic Compliance
EN 55032 Class B & EN 61000-4 (NEW Standard 2022)
Cavity Tuning allows a long term drift better than 2·10-16/day
Distance control, remote Ethernet monitoring & Self-diagnostics (Alarms)
Warranty/Maintenance
2 years
Lifetime
>20 years
